Product Testing

Download U.S. DOE Testing Report

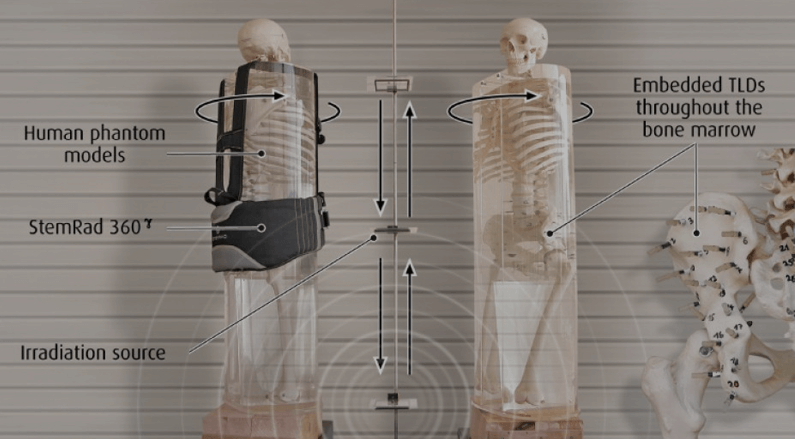

  1. Anatomically accurate human phantom models were employed.
  2. 60 thermoluminescent dosimeters (TLDs) were embedded throughout the bone marrow cavities of the pelvis for precise recording of attenuation at each point.
  3. One phantom was equipped with the StemRad 360 Gamma, whereas the other served as an unprotected control.
  4. Phantoms were then subjected to irradiation with a Cs-137 (0.662 Mev) source.

Fallout Recreation: Cloud Source Cs-137 Irradiation

To create a realistic fallout setting, the source was shifted in relation to the phantoms, to three discreet positions along the Z-axis while the phantoms themselves were rotated to four discreet positions along the X-Y plane.
